Morphological Operators
import unist
import scanpy as sc
The datasets used for this tutorial is the reconstruction of human metastatic lymph node and can be downloaded at:
https://drive.google.com/file/d/1FtQ-yUSH418SYTPFRgR-ONolvwmYXgJh/view?usp=sharing
## read in data
adata = sc.read("/Users/shuilan/Library/CloudStorage/OneDrive-InsideMDAnderson/3D spatial transcriptomics/data/3D/OpenST_predicted.h5ad")
adata
AnnData object with n_obs × n_vars = 831406 × 0
obs: 'pred_label'
obsm: 'spatial'
from unist.downstream.vis import points_to_imagedata, expression_to_imagedata, three_d_plot, construct_pc

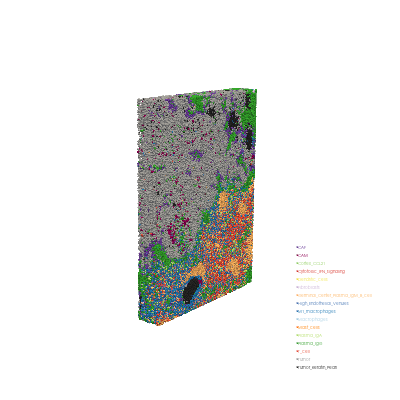

visualize the tumor region
anno_colors = {
'T_cell': '#E64B35',
'Cytotoxic_IFN_signaling': '#D73027',
'Dendritic_cells': '#F0E442',
'Macrophages': '#A6CEE3',
'M1_macrophages': '#1F78B4',
'Mast_cells': '#FF7F00',
'Germinal_Center_Plasma_IgM_B_cell': '#FDB462',
'Plasma_IgA': '#B3DE69',
'Plasma_IgG': '#33A02C',
'Fibroblasts': '#CAB2D6',
'CAF': '#6A3D9A',
'CAM': '#8E0152',
'High_Endothelial_Venules': '#4575B4',
'Cortex_CCL21': '#91CF60',
'Tumor': '#999999',
'Tumor_Keratin_Pearl': '#252525'
}
adata = adata[adata.obs["pred_label"] != "unknown"].copy()
pc_model, plot_cmap = construct_pc(
adata=adata.copy(),
spatial_key="spatial",
groupby="pred_label",
key_added="pred_label",
colormap=anno_colors
)
saved_oblique_view = [(3463.5171334479587, 23927.044977244626, -16208.928424517384),
(10000.0, 2000.0, 550.7246417999268),
(-0.9730153758368119, -0.17606927302684708, 0.14913312670545562)]
three_d_plot(
model=pc_model,
key="pred_label",
model_size=2,
model_style="points",
opacity=1,
background="white",
cpo=saved_oblique_view,
window_size=(400, 400),
jupyter="static",
legend_size=(0.22, 0.35) # adjust the legend size
)
CameraPosition(position=(3463.5171334479587, 23927.044977244626, -16208.928424517384),
focal_point=(10000.0, 2000.0, 550.7246417999268),
viewup=(-0.9730153758368119, -0.17606927302684708, 0.14913312670545562))

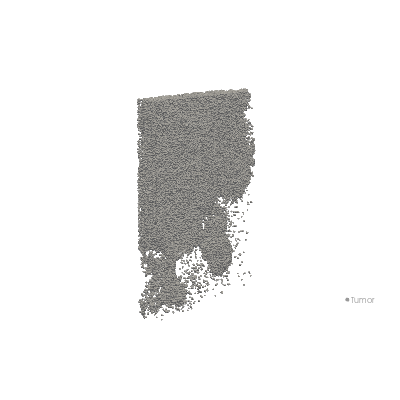

### tumor region
adata_tumor = adata[adata.obs["pred_label"] == "Tumor"].copy()
pc_model, plot_cmap = construct_pc(
adata=adata_tumor.copy(),
spatial_key="spatial",
groupby="pred_label",
key_added="pred_label",
colormap=anno_colors
)
three_d_plot(
model=pc_model,
key="pred_label",
model_size=2,
model_style="points",
opacity=1,
background="white",
cpo=saved_oblique_view,
window_size=(400, 400),
jupyter="static",
)
CameraPosition(position=(3463.5171334479587, 23927.044977244626, -16208.928424517384),
focal_point=(10000.0, 2000.0, 550.7246417999268),
viewup=(-0.9730153758368119, -0.17606927302684708, 0.14913312670545562))
voxelize tumor region
grid = points_to_imagedata(
pc_model,
grid_shape=(532, 400, 34),
x_range=(6000, 14000),
y_range=(-1000, 5000),
z_range=(57.97, 1043.48),
label_to_value={"pred_label": {"Tumor": 1}},
empty_voxel_value=0,
)
grid.save("/Users/shuilan/Library/CloudStorage/OneDrive-InsideMDAnderson/3D spatial transcriptomics/data/3D/tumor_mask.vti")

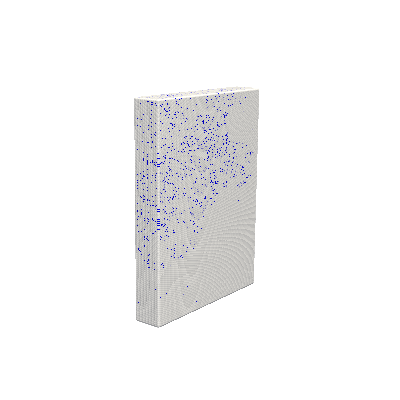

## the point cloud is very sparse
three_d_plot(
model=grid,
key="pred_label",
colormap=["white", "blue"], # 0 - white, 1 - blue
model_size=4,
model_style="points",
opacity=1,
background="white",
cpo=saved_oblique_view,
window_size=(400, 400),
jupyter="static",
show_legend = False
)
CameraPosition(position=(3463.5171334479587, 23927.044977244626, -16208.928424517384),
focal_point=(10000.0, 2000.0, 550.7246417999268),
viewup=(-0.9730153758368119, -0.17606927302684708, 0.14913312670545562))
Visualize the voxel data in paraview is recommended. Please see Paraview Visualization at https://unist-tutorial.readthedocs.io/en/latest/tutorial.html.
print("Dimensions:", grid.GetDimensions())
print("Spacing:", grid.GetSpacing()) ## note that the dispersity in z direction is larger than x and y
print("Origin:", grid.GetOrigin())
print("Extent:", grid.GetExtent())
print("Scalar Type:", grid.GetScalarTypeAsString())
print("Scalar Range:", grid.GetScalarRange())
Dimensions: (533, 401, 35)
Spacing: (15.037593984962406, 15.0, 28.985588235294117)
Origin: (6000.0, -1000.0, 57.97)
Extent: (0, 532, 0, 400, 0, 34)
Scalar Type: double
Scalar Range: (0.0, 1.0)
downsampling along x,y
import vtk
resampler = vtk.vtkImageResample()
resampler.SetInputData(grid)
factor = 0.5
resampler.SetAxisMagnificationFactor(0, factor)
resampler.SetAxisMagnificationFactor(1, factor)
resampler.SetAxisMagnificationFactor(2, 1)
resampler.Update()
downsampled_data = resampler.GetOutput()
print(f"Dimensions after downsampling: {downsampled_data.GetDimensions()}")
print(f"Spacing after downsampling: {downsampled_data.GetSpacing()}")
Dimensions after downsampling: (267, 201, 35)
Spacing after downsampling: (30.075187969924812, 30.0, 28.985588235294117)

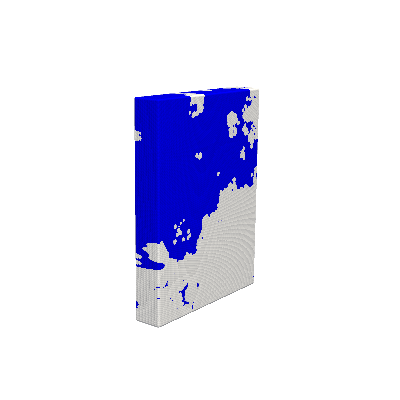

Morphologiy closing
from unist.downstream.morph import closing, opening, dilation, erosion
grid.set_active_scalars("pred_label")
(<FieldAssociation.CELL: 1>, pyvista_ndarray([0., 0., 0., ..., 0., 0., 0.]))
grid_closed = closing(
grid,
foreground_value=1,
background_value=0,
kernel_size=(10, 10, 20),
)
grid_closed.save("/Users/shuilan/Library/CloudStorage/OneDrive-InsideMDAnderson/3D spatial transcriptomics/data/3D/tumor_mask_closed.vti")
three_d_plot(
model=grid_closed,
key="pred_label",
colormap=["white", "blue"], # 0 - white, 1 - blue
model_size=4,
model_style="points",
opacity=1,
background="white",
cpo=saved_oblique_view,
window_size=(400, 400),
jupyter="static",
show_legend = False
)
CameraPosition(position=(3463.5171334479587, 23927.044977244626, -16208.928424517384),
focal_point=(10000.0, 2000.0, 550.7246417999268),
viewup=(-0.9730153758368119, -0.17606927302684708, 0.14913312670545562))

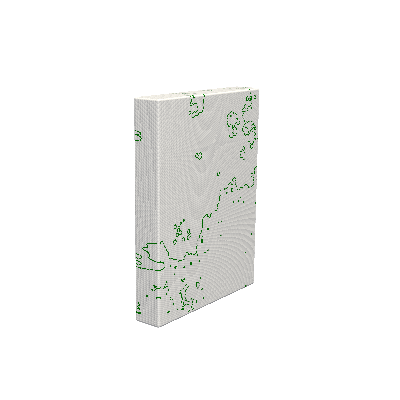

Morphology dilate to get peritumoral region
from unist.downstream.morph import periphery_mask, boundary_mask
periphery = periphery_mask(
grid_closed,
foreground_value=1,
background_value=0,
kernel_size=(5, 5, 3), # adjust the kernel size to control the thickness of the periphery mask
output_value=2, # set periphery voxels to 2 for better visualization in paraview
)
periphery.save("/Users/shuilan/Library/CloudStorage/OneDrive-InsideMDAnderson/3D spatial transcriptomics/data/3D/periphery_mask.vti")
three_d_plot(
model=periphery,
key="pred_label",
colormap=["white", "green"], # 0 - white, 2 - green
model_size=4,
model_style="points",
opacity=1,
background="white",
cpo=saved_oblique_view,
window_size=(400, 400),
jupyter="static",
show_legend = False
)
CameraPosition(position=(3463.5171334479587, 23927.044977244626, -16208.928424517384),
focal_point=(10000.0, 2000.0, 550.7246417999268),
viewup=(-0.9730153758368119, -0.17606927302684708, 0.14913312670545562))

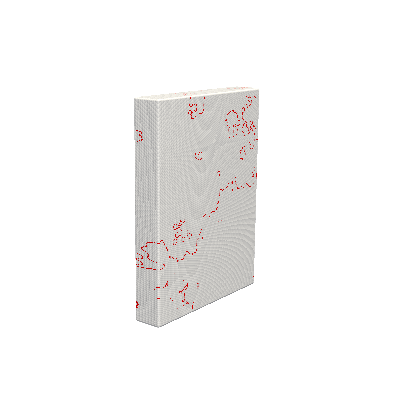

Morphology erode to get tumor boundary
boundary = boundary_mask(
grid_closed,
foreground_value=1,
background_value=0,
kernel_size=(3, 3, 3),
output_value=3,
)
boundary.save("/Users/shuilan/Library/CloudStorage/OneDrive-InsideMDAnderson/3D spatial transcriptomics/data/3D/boundary_mask.vti")
three_d_plot(
model=boundary,
key="pred_label",
colormap=["white", "red"], # 0 - white, 3 - red
model_size=4,
model_style="points",
opacity=1,
background="white",
cpo=saved_oblique_view,
window_size=(400, 400),
jupyter="static",
show_legend = False
)
CameraPosition(position=(3463.5171334479587, 23927.044977244626, -16208.928424517384),
focal_point=(10000.0, 2000.0, 550.7246417999268),
viewup=(-0.9730153758368119, -0.17606927302684708, 0.14913312670545562))
Morphology characteristic
from unist.downstream.morph import calculate_volume_and_surface_area
vol, area = calculate_volume_and_surface_area(grid_closed, foreground_value=1)
## the unit is in voxel, to convert to physical unit, we need to multiply by the voxel spacing
voxel_volume = grid_closed.GetSpacing()[0] * grid_closed.GetSpacing()[1] * grid_closed.GetSpacing()[2]
physical_volume = vol * voxel_volume
print(f"Volume in voxels: {vol}, Volume in physical units: {physical_volume}")
voxel_area = 2 * (grid_closed.GetSpacing()[0] * grid_closed.GetSpacing()[1] +
grid_closed.GetSpacing()[1] * grid_closed.GetSpacing()[2] +
grid_closed.GetSpacing()[0] * grid_closed.GetSpacing()[2])
physical_area = area * voxel_area
print(f"Surface area in voxels: {area}, Surface area in physical units: {physical_area}")
Mesh reconstruction
contour_filter = vtk.vtkContourFilter()
contour_filter.SetInputData(grid_closed)
contour_filter.SetValue(0, 0.5) ## isosurface at 0.5 to separate foreground (1) and background (0)
contour_filter.ComputeNormalsOn()
contour_filter.Update()
raw_mesh = contour_filter.GetOutput()
print(f" -> The raw mesh contains {raw_mesh.GetNumberOfPolys()} triangular faces.")
smoother = vtk.vtkSmoothPolyDataFilter()
smoother.SetInputData(raw_mesh)
smoother.SetNumberOfIterations(20)
smoother.SetRelaxationFactor(0.1)
smoother.FeatureEdgeSmoothingOff()
smoother.BoundarySmoothingOn()
smoother.Update()
# Get the smoothed mesh
smoothed_mesh = smoother.GetOutput()
print(f" -> The smoothed mesh contains {smoothed_mesh.GetNumberOfPolys()} triangular faces.")
decimator = vtk.vtkQuadricDecimation()
decimator.SetInputData(smoothed_mesh)
# Set target reduction ratio (e.g., 0.9 means reducing to 10% of the original number of triangles)
decimator.SetTargetReduction(0.9)
decimator.Update()
# Get the final lightweight mesh
final_mesh = decimator.GetOutput()
print(f" -> The final mesh contains {final_mesh.GetNumberOfPolys()} triangular faces.")
# --- 4. Save the final mesh ---
final_stl_path = "/Users/shuilan/Library/CloudStorage/OneDrive-InsideMDAnderson/3D spatial transcriptomics/data/3D/final_tumor_mesh.stl"
stl_writer = vtk.vtkSTLWriter()
stl_writer.SetFileName(final_stl_path)
stl_writer.SetInputData(final_mesh)
stl_writer.Write()
print("----------------------------------------")
print(f"Pipeline complete! The final mesh has been saved as: {final_stl_path}")
-> The raw mesh contains 527986 triangular faces.
-> The smoothed mesh contains 527986 triangular faces.
-> The final mesh contains 52797 triangular faces.
----------------------------------------
Pipeline complete! The final mesh has been saved as: /Users/shuilan/Library/CloudStorage/OneDrive-InsideMDAnderson/3D spatial transcriptomics/data/3D/final_tumor_mesh.stl
